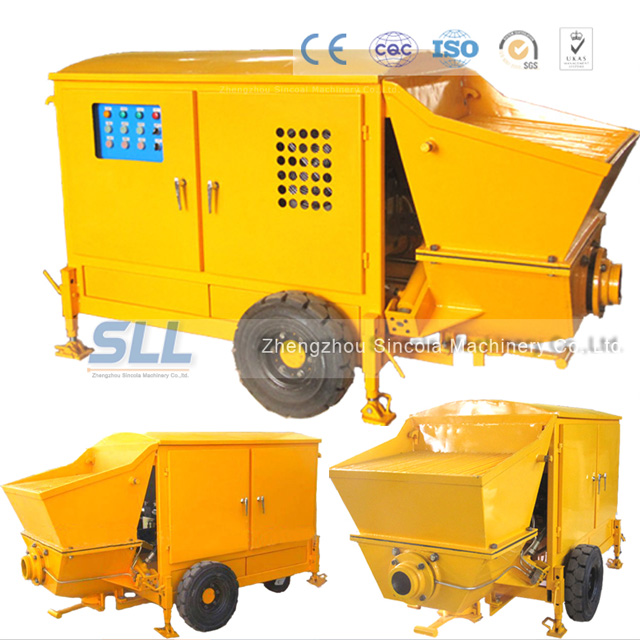

Sincola SPB7 Wet Mix Shotcrete Equipment 7m3/h Concrete Spray
Injection Pump
Introduction
SPB7 shotcrete pump is a piston type wet type shotcrete machine for
the market demand. The use of advanced "S" for the valve, and it is
suitable for the dense concrete conveyor. This pump fill the small
concrete pump’s disadvantage,and also has the characteristics of
large concrete pump. SPB shotcrete pump is a hydraulic pump with
the Piston power, especially suitable for artificial sprayed
concrete, concrete pumping and pressure grouting, the new soil
Spraying, mortar spraying and refractories, it has simple
structure, small size, reliable of the multi-purpose pump.
Technical Parameters of SPB7 Shotcrete Pump:
| Model | Unit | SPB7 |
| Capacity | m3/h | 7 |
| Max. aggregate size | mm | 15 |
| Fineness modulus | / | ≥2.5 |
| Delivery pipe | mm | DN100/DN80 |
| Concrete slump | cm | 10~18 |
| Max. horizontally conveying dist. | m | 150 |
| Max. vertically conveying dist. | m | 80 |
| Main motor power | kw | 22 |
| Max. operating oil pressure | M pa | 19 |
| Max. output pressure | M pa | 8 |
| Feeding height | mm | 1100 |
| Dimensions (L×W×H) | mm | 2990×1200×1140 |
| Weight | kg | 1600 |
Application:
Convey fine aggregate concrete and mortar for high buildings; grout
heat-insulated lightweight foamed cement, mortar floor heating, and
self leveling for ground architecture; spray plain concrete and
fiber concrete in engineering construction; convey and spray
refractory and thermal insulation material; spray afforestation
soil in ecological environment construction; pressure perfussion
for foundation piles, back fill in over broken tunnels, railway
slope supporting, and disaster management.
Features of shotcrete concrete pump
Dense flow transportation, artificial spray, spray guns add wind;
spray uniformity, stability, low consumption of wind, small
rebound;
Transmission distance, the level of 150 m, vertical 70 m,
effectively enhance work efficiency;
PLC control to operate more reliable, simple;
Soft-start which can protect the electrical circuit;
Two independent hydraulic circuit;
Through the hand pump of the quick-setting can adjust quick-setting
level of emissions;
Since the sealed, high hardness seal ring, sealed;
Suitable for steel fiber feeding;
Shipping and packing
Packing: Wooden case
Ship and air transport is allowed
About Us:
Zhengzhou Sincola Machinery Co., Ltd. is a high-technology, modern
enterprise established in 2001, professionally engaged in the
R&D and manufacturing of construction materials(concrete,
mortar,cement etc)pumping and spraying.
Our main products: concrete spraying machine,concrete pumping
machine, mortar spraying,plaster machine and mortar pump,hose pump,
wall rendering machine etc,widely used in railway, tunnel, highway,
housing construction support and other projects built facilities.
Products are sold well all over the country, and exported to
eastern Europe, Middle East, southeast Asia, central Asia, South
Asia, Africa, the Americas, Oceania more than 30 countries and
regions.
