Hydraulic High Pressure Cement Mixing Grout Mixer Pump Machine
Equipment
Product Instruction & Application

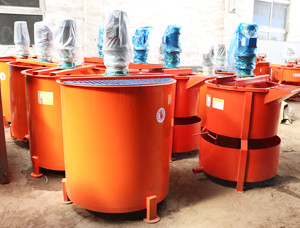

SINCOLA SM250-700 is a high work efficiency cement grout mixer for
compounding / mixing the cement and water. It consists of two
separate tanks---mixing tank and agitator tank, more convenient for
transportation.
Combine with grouting pump, it can grout with pressure in mining,
tunnel, culvert, subway, hydropower engineering, underground
excavation engineering etc.
SM150-200/SM250-700 Grout Mixer Technical Parameters
| Item | SM150-200 | SM250-700 |
| Mixing tank capacity | 150 L | 250 L |
| Agitating tank capacity | 200 L | 700 L |
| Mixing speed | 1500 r/min | 1500 r/min |
| Agitating speed | 136 r/min | 33 r/min |
| Mixing Unit | 3 kW | 5.5 kW |
| Agitating Unit | 1.1 kW | 1.5 kW |
| Chassis | kickstand | kickstand |
| Dimensions | 950×750×1190 mm | 2650×1000×2150 mm |
| Weight | 460 kg | 560 kg |
| Application field | Grout or other materials suitable for being mixed quickly |
Main Features
1. High mixing efficiency, motor directly driving impeller to get
the high-speed liquid flow, about 2~3 minutes to complete a mixing;
2. High reliability, vertical or horizontal-mounted electric motor,
low failure rate and good seal;
3. Adopt the ordinary rubber pipe as consumable part for control
valve, easy to get it on construction site;
Advantages
1. Tank body manufactured by the thicker plate for more reliable
work and longer use life;
2. The whole stamping structure for the tank bottom;
3. Special weld handling;
4. IP55 100% new electrical motor;
5. Electrical control box manufactured by thicker plate and
standard Schneider electrical elements;
6. Special-design seal structure for the pump;
7. Painted after sandblasting for a pretty appearance;
Warranty period
1. Quality warranty period 12 months refers to the working time
whichever occurs carlicr.
2. Working time means the accumulative working time of the facility
after delivered from factory. Using time means the period dated
from the day customers purchases the facility.
3. If the timer of the facility fails or using time and displayed
working time are not consistent.
4. Warranty period will not be affected by the changes of users, or
facility stop caused by any reasons.
5. Warranty period of new parts replaced during quality warranty
services are the same with the facility, calculated by facility
working time and using time, and will end with the warranty period
of the facility.
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the
machine.
* Engineers available to service machinery overseas.
Company Profile
Having many years foreign trade experience, Zhengzhou Sincola
Machinery Co.,Ltd has grown into an excellent Grout Mixer
manufacturer manufacturer and exporter.
Number of Employees: 50-100
Main Markets:
Asia(Saudi Arabia, Kuwait, UAE, Lebanon, Singapore etc) African
(South Africa Nigeria, Sudan etc), Europe(Belgium Romania,
Switzerland, Macedonia etc) Australia
Export Percentage: 30% - 50%
If you need these machines, please don't hesitate to contact me.
