The industrial hose pump is a new,multi-function and multipurpose
industrial pump developed on the basis of foreign advanced
technologies.It breaks away the restrictions of traditional pump
impeller and shaft seal and uses the totally different mechanism
compared with traditional pump.So it is very suitable to transport
materials with high viscosity,high corrosivity and high content lf
solid particles.
There is a specially made rubber hose with smooth inner surface and
high strength installed in the pump body. When a pair of roller
rotate and squeeze the hose, the rotation and squeezing force will
force the transported material flow in single direction and with no
back flow. After the material in hose is transported, the squeezed
hose will return to its normal shape by its elasticity and pressing
force of side rollers. During this procedure, the vacuum generated
will suck the material into hose cavity, and then, the sucked
material will be squeezed by coming rollers and discharged from the
output again. With the continuous rotation of roller, the material
is sucked and discharged continuously.
Hose Squeeze Pump Features:
1. No valve operation, no back flow, stable pumping flow, low fault
rate.
2. Free exchange of suction inlet and discharge outlet. When the
pump is blocked, reversing pump can discharge the obstruction.
3. High vacuum, strong self-suction capacity.
4. Convenient maintenance, less wearable parts (except extruded
hose).
Technical Parameters:

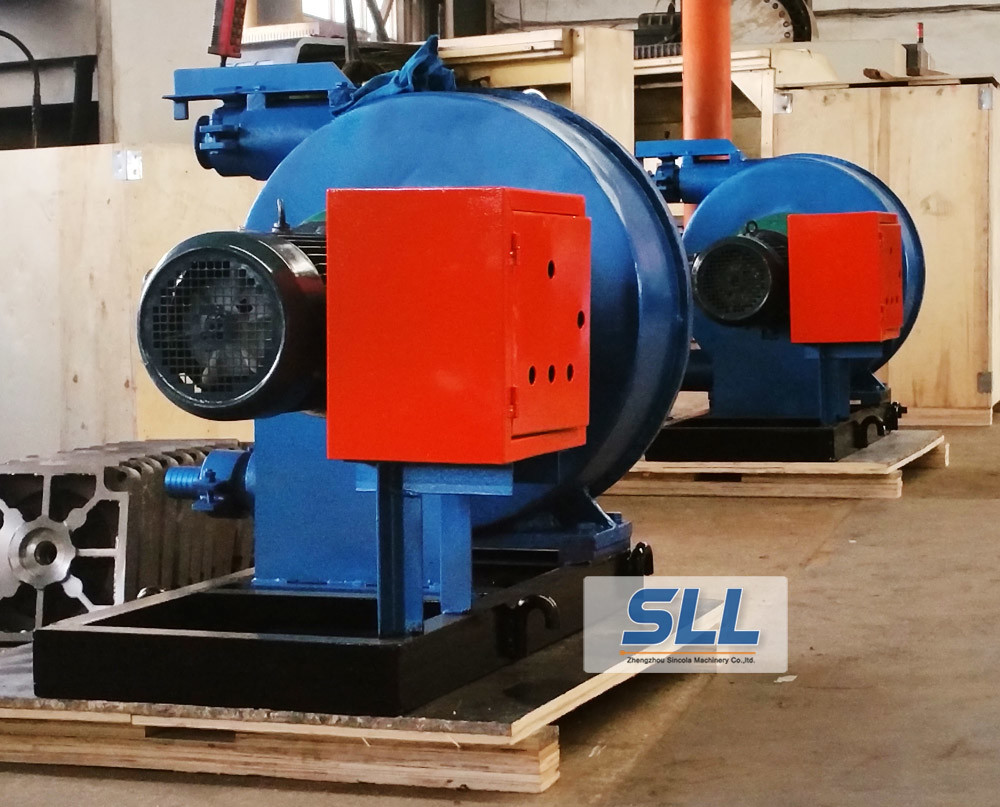

| Model | SH50C Squeeze Hose Pump |
| Output | 18000~28000 L/h |
| Rated pressure | 1.5 MPa |
| Rev. | 40~55 r/min |
| Hose length | 1900 mm |
| Max. particle dia. | 100 mm |
| Max. suction dist. | 5 m |
| Motor power | 11.0/ 15.0 KW |
| Reducer type | Cycloidal reducer |
Note:
1. Driven power could be electric motor or diesel engine.
2. Various squeeze hoses are available for pumping different
materials.
3. Customized pump is available.
Peristaltic Pump Tubing Advantages:
1. Unique structure with no sealing element, no leakage, no
pollution;
2. Advanced rolling technology adopted, no need of roller;
3. High suction ability, self-cleaning ability, sucking materials
in two directions;
4. Simple hose installation, simple operation, easy to assemble and
maintain, lower maintenance cost;
5. Linear regulation of flow rate,limited,measuring ability;
6. No block when pumping fluid with high viscosity and foreign
substance contained;
7. Long service life;
8. High lift and output pressure.
Application:
Mining well project, hydropower engineering, highway (railway)
tunnel, subway engineering, bridge and slope maintenance, air-raid
shelter construction, municipal construction, environmental
greening project, blast-furnace refractories spraying, etc.
Company Introduction
Sincola has been engaged in the research and production of hose
pump for many years. With the experiences and special technology
SINCOLA won a quick development on the hose pump int the recent
years.
Today SINCOLA hose pumps are the very mature products wiwth
different kinds of types. The work pressure can reach 1.5Mpa and
the output can be 40 cubic meters/hour. SINCOLA pumps are widely
applied at home and abroad. Based on the excellent work principle,
SINCOLA hose pumps will have a more extensive application in the
next days.
If you need more informations, please contact with me.
