    Road Slope Protection Mini Concrete Pump , 7-9m3/H Concrete Spraying Machine

    Ask Lasest Price
    Brand Name : SINCOLA
    Model Number : SPZ-9
    Certification : CE, ISO, BV
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 sets per 10 days
    Delivery Time : 5-10 working days
    • Product Details
    • Company Profile

    Road Slope Protection Mini Concrete Pump , 7-9m3/H Concrete Spraying Machine

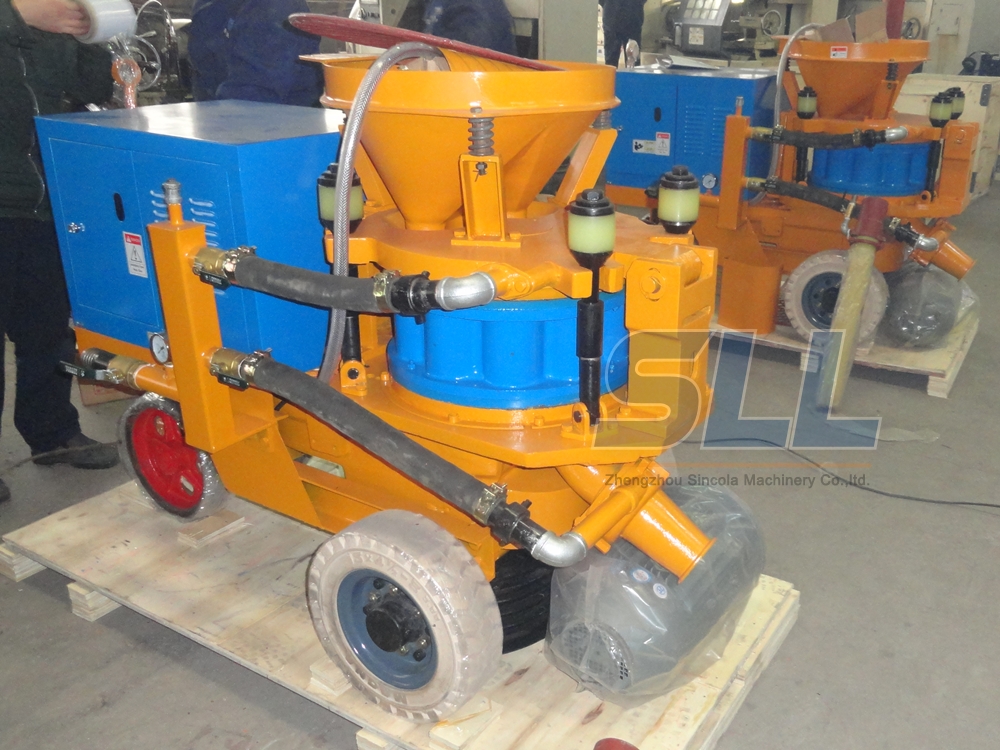

    Road Slope Protection Dry and Half Wet Shotcrete Machine SPZ-9

    Introduction

    Dry Mix Shotcrete Machine:
    1. SPZ series shotcrete machine can be used to spray dry and half wet concrete material and so on.

    2. We have 20 years produce expericence with advanced technology, rational structure, stable performance and long service life

    3. SPZ series shotcrete machine is widely used for concrete spraying operation in the tunnel, culvert, subway, hydroelectric works, underground works and high-methane laneway of coal mine.


    Technical Parameters of SPZ-9 Dry Mix Concrete Shotcrete Machine:

    ModelSPZ-9SPZ-9DSPZ-9A
    Drive TypeElectric TypeDiesel Engine TypeAir Motor Type
    Output9 m3/h9 m3/h9 m3/h
    Max.conv.dist150150150
    Water cement ratio< 0.4< 0.4< 0.4
    Max.Aggregate.size20mm20mm20mm
    Hose inner sizeφ57/64 mmφ57/64 mmφ57/64 mm
    Operating air pressure0.2-0.6 MPa0.2-0.6 MPa0.2-0.6 MPa
    Air consumption9-11 m3/min9-11 m3/min18-22m3/min
    Motor power7.5 kW22hp---
    Dimension(LxHxW)1500x830x1220mm2250830x1220mm1500x830x1220mm
    Weight890kg970kg920kg
    Voltages

    220V/380V/400V/415V/

    440V/660V 50Hz/60Hz

    Basic chassis1. Tyre; 2. Skid; 3. Rail-wheel

    Price And Quality:


    1. We are direct manufacturer of kinds of construction machinery,so the factory price will be good performance
    2. And, about the machine electric motor, electrical apparatus element, flow output also adjustable, electric voltage etc, can customize.
    3. About the shotcrete machine, many details and dessign we are modified every year according to the customers needs ,for example dry mix shotcrete machine dedusting, flow adjust through transducer, feeding machine for shotcrete machine etc.

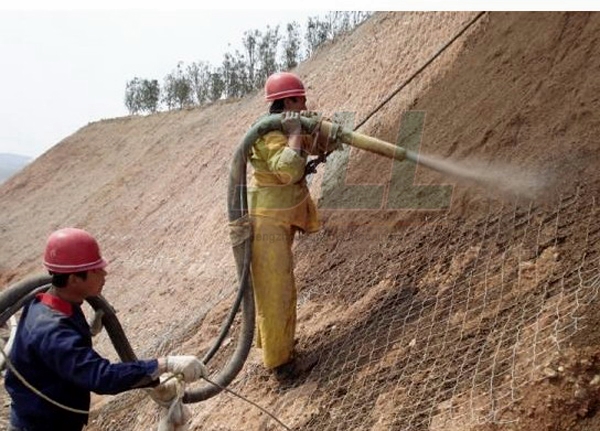

    Applications Of Dry shotcrete machine

    Middle-size rotary shotcrete machine, to spray the dry or damp concrete mixture in tunnel, under mine, deep-foundation engineering, slope engineering, swimming pool etc.


    We also have wet shotcrete machine, shotcrete pump, large capacity concrete spraying system (automatic shotcrete machine with robot arm),concrete pump, mortar mixer, mortar pump, mortar spraying plaster machine, grouting mixer, grouting pump, hand grouting pump, hose pump


    Features of shotcrete concrete machine


    1. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
    2. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
    3. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life .
    4. Low pressure and low speed vortex air transport.
    5. Well compact and seal, small dust, durable rubber plate.
    6. Apply to steel fiber or chemical fiber concrete spraying.


    Machine Accessories

    Matching Spare Parts of Dry Shotcrete Machine:

    Long Joint

    Joint Clamp

    Conveying hose

    Upper sealing plate

    Lower sealing plate

    Rubber Elbow

    Taper sleeve

    Rubber Chamber

    Nozzle and seat

    Nozzle


    And, We long supply shotcrete machine and shotcrete machine parts.
    Dry Mix Shotcrete Machine SPZ-3 Spare Parts;
    Dry Shotcrete Machine SPZ-5 Spare Parts;
    Dry Shotcrete Machine SPZ-9 Spare Parts;
    Wet Shotcrete Machine SPZ3000 Spare Parts;
    And our shotcrete machine parts size is standard size, it is suitable for marketing shotcrete machine.


    Shipping and packing:
    Packing: Wooden case
    Ship and air transport is allowed

    Welcome inquiry.
