Diesel Engine Wet Mix Shotcrete Machine With Air Compressor Working
Introduction
Wet Mix Shotcrete Machine:
SPZ3000 both dry and wet shotcrete spraying concrete machine
description
SPZ3000 shotcrete machine is a universal concrete spraying machine
for the processing of wet or dry mix. SPZ3000 due to its full
pneumatic driven unit, for the required anti-explosion
applications, such as coal mining, tunnel and underground
engineering, this unit is perfect and specific one.
The machine is suitable either for manual spraying or by means of a
robotic arm.
Basic: Electric drive can be combined with tyre chassis.
Extended (optional):diesel drive combined with Skid or Rail-wheel.
We have 20 years produce expericence with advanced technology,
rational structure, stable performance and long service life
shotcrete machine is widely used for concrete spraying operation in
the tunnel, culvert, subway, hydroelectric works, underground works
and high-methane laneway of coal mine.
Technical Parameters of SPZ3000 Wet Concrete Shotcrete Machine:
| No.: | Model | SPZ3000D |
| 1 | Output | 5-9m3/h |
| 2 | Max.convey dist. | 35 m |
| 3 | Max.aggregate size | Φ20 mm |
| 4 | Concrete slump | 8-15 cm |
| 5 | Hose inner size | φ57/64 mm |
| 6 | Operating air pressure | 0.2-0.6 MPa |
| 7 | Air consumption | 9-10 m³/min |
| 8 | Discharge height | 1.17 m |
| 9 | Rotor Rev. | 11 r/min |
| 10 | Drive Type | Diesel Engine 22hp |
| 11 | Dosing pump rated pressure | 0.6 MPa |
| 12 | Dosing pump output | 17.5-88 L/h |
| 13 | Overall dimension | 2150×950×1180 mm |
| 14 | weight | 1050 kg |
Price And Quality:
1. We are direct manufacturer of kinds of construction machinery,so
the factory price will be good performance
2. And, about the machine electric motor, electrical apparatus
element, flow output also adjustable, electric voltage etc, can
customize.
3. About the shotcrete machine, many details and dessign we are
modified every year according to the customers needs ,for example
dry mix shotcrete machine dedusting, flow adjust through
transducer, feeding machine for shotcrete machine etc.
Applications Of shotcrete machin

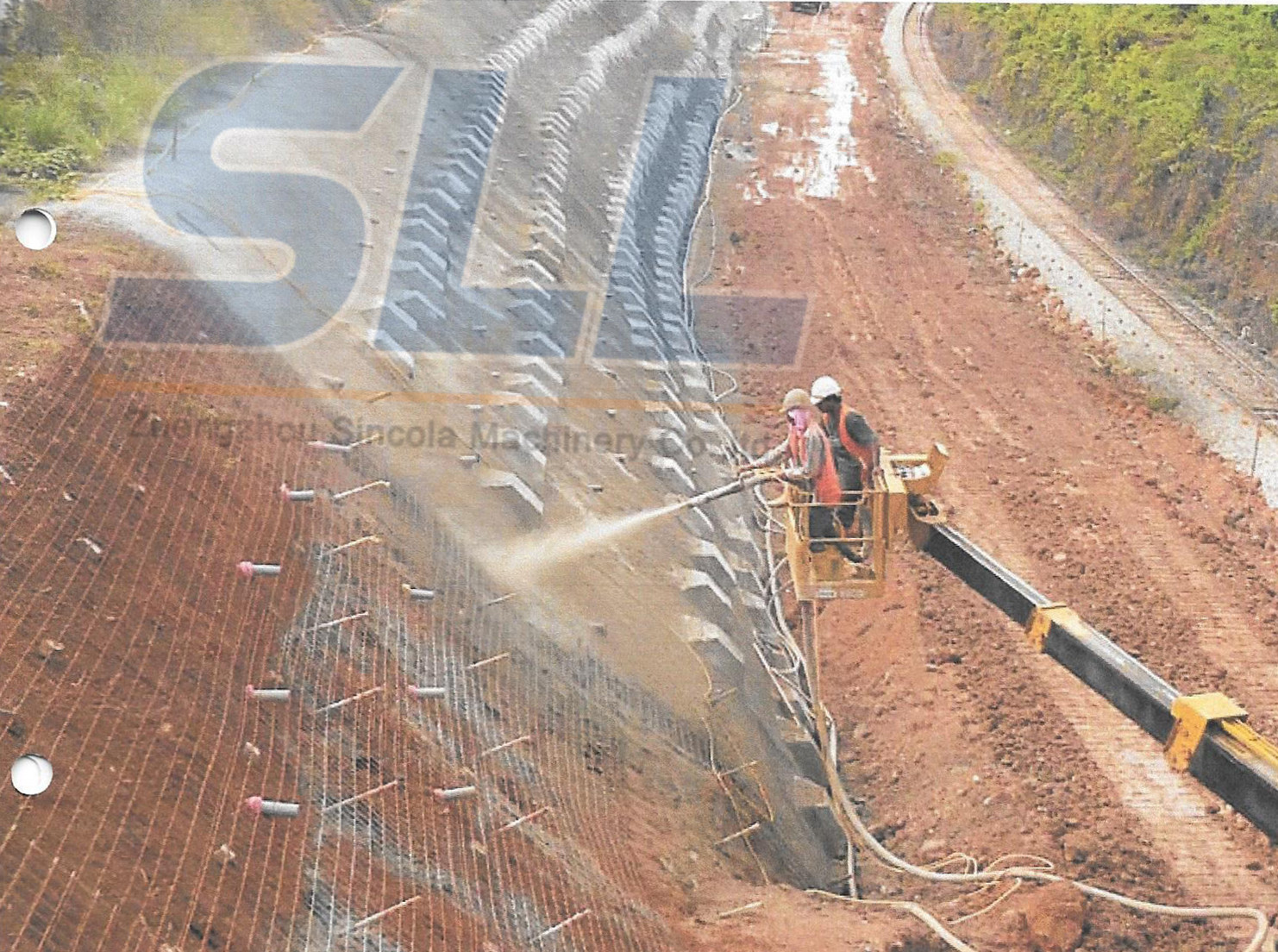

Middle-size rotary shotcrete machine, to spray the dry or damp
concrete mixture in tunnel, under mine, deep-foundation
engineering, slope engineering, swimming pool etc.
We also have wet shotcrete machine, shotcrete pump, large capacity
concrete spraying system (automatic shotcrete machine with robot
arm),concrete pump, mortar mixer, mortar pump, mortar spraying
plaster machine, grouting mixer, grouting pump, hand grouting pump,
hose pump
Features of shotcrete concrete machine
1. Non-adhesion going-through rotor with new material chamber,
completely eliminate bonding and blocking during operation so as to
reduce clearance and maintenance period.
2. Thin flow conveying method with vortex flow, so the spraying
flow is even, continuous and steady, to improve the shotcrete
quality.
3. Four-point clamping device make it easy to adjust the press
between sealing plate and rotor disk so as to no air and dusk leak
and prolong consumption parts life .
4. Low pressure and low speed vortex air transport.
5. Well compact and seal, small dust, durable rubber plate.
6. Apply to steel fiber or chemical fiber concrete spraying.
Machine Accessories
Rubber Sealing Plate (upper and lower)
Rotor steel plate
Rubber Chamber
Cone Casing Pipe
Rubber Elbow
Spraying Nozzle
Nozzle base
Joint
Clamp
Convey hose
Air hose
We long supply shotcrete machine and shotcrete machine parts.
Dry Mix Shotcrete Machine SPZ-3 Spare Parts;
Dry Shotcrete Machine SPZ-5 Spare Parts;
Dry Shotcrete Machine SPZ-9 Spare Parts;
Wet Shotcrete Machine SPZ3000 Spare Parts;
And our shotcrete machine parts size is standard size, it is
suitable for marketing shotcrete machine.
Shipping and packing:
Packing: Wooden case
Ship and air transport is allowed
About Us:
Zhengzhou Sincola Machinery Co., Ltd. is a high-technology, modern
enterprise established in 2001, professionally engaged in the
R&D and manufacturing of construction materials(concrete,
mortar,cement etc)pumping and spraying.
If you are interested in our products, please contact us with no
hesitation. We are sure any of your questions will get our prompt
attention& reply. And we are looking forward to your visit to our
factory. Welcome
