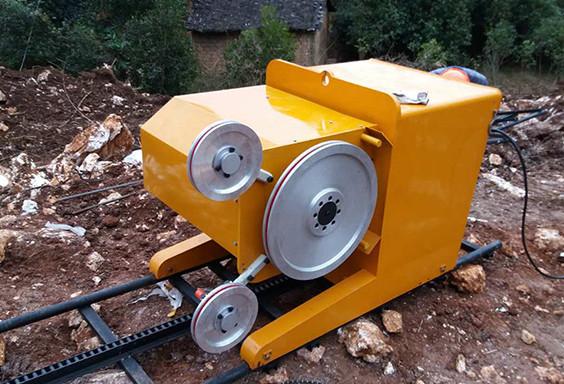

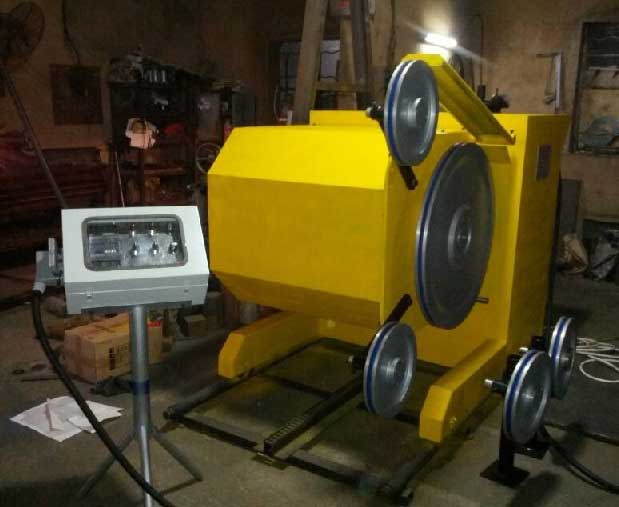

18.5 KW Diamond Wire Saw Stone Cutting Machine For Reinforced
Concrete Cutting
Description
The electrical control system of our wire saw machines are with PLC
and two inverters that allow to variable linear speed of wire from
0-40 M/S. The translation and 360 degree rotation of
flywheel-holder head of wire saw machines are motorized and allow
an easy and fast positioning of the machine, as well as the
execution of two parallel cuts. All the movement of the wire saw
machines are motorized and an automatic mechanism keeps always
constant and programmed tension of diamond wire in working
conditions. Our Wire Saw Machines are with Safety devices that shut
off the machine in case of wire breakage, over voltage, over
electric current, over heating of motor, incorrect maneuvers etc.
The greatest advantage of our wire saw machines are safe cutting
and good diamond wire durability as well as being user friendly.
Specification
1. The wire tension and cutting current is closed loop automatic
controlled by PLC and inverter.
2. The cutting process can be automatical controlled accurately.
3. The movement and rotation of the cutting head is driven by motor
with position Limitation Protection.
4. Machine protection functions including:wire broken,Machine
overload,cutting finished,and others malfunction happened
5. Display an saving with digitization:the value of cutting
current,linear speed and moving speed indicated on the panel,and
the cutting time can be saved.
6. The machine without phase request.It is needn't to change and
distinguish.
Technical Parameters
| Product model | SSJ-A1 |
| Specification(L*W*H) | 880*850*1760mm |
| Number of wheels | 9pcs |
| Rope length | 9m |
| Dual drive mode Cutting time | 20min/m2 |
| Weight | 130kg |
Advantages
1. Manufactured with first quality materials and components, the
TSY G series is a strong and reliable machine that allows to easily
make great cuts on any kind of material.
2. The feed movement is automatically controlled by PLC and
inverter that allows a precise and complete management of the
diamond wire during the cutting , so that to obtain the best output
and production on any material.
3. The machine have protection functions which including: wire
broken, machine overload, cutting finished,and other malfunction
happened, so that to maintain the best efficiency of the system.
4. The motor head can move per side, in order to make two parallel
cuts without moving the machine,which is driven by motor with
Position Limited Function. The same device allows to make
horizontal cuts at ground level without the use of any auxiliary
accessories.
