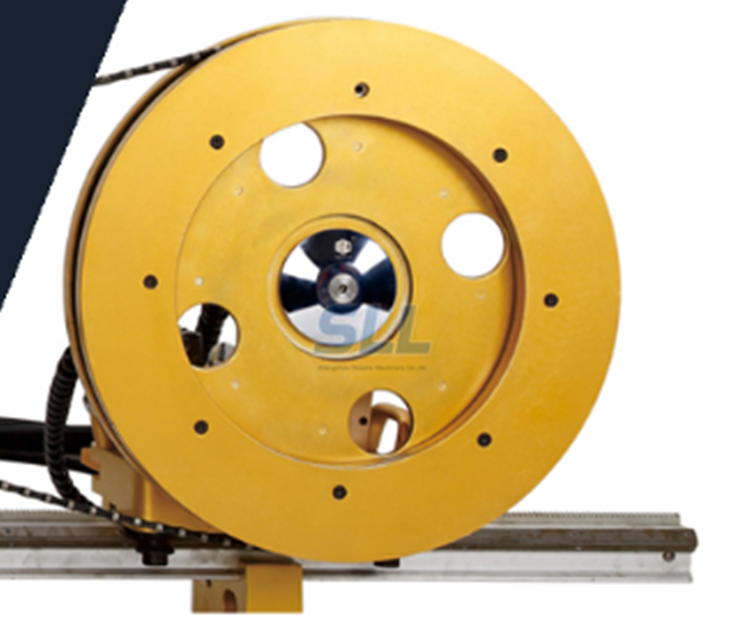

Professional Hydraulic Diamond Wire Sawing Stone Block Saw Wire
Cutting Machine
The diamond wire cutting machine, combines high productivity,
convenience and security. With a modern design, its robust
structure provides high resistance to weathering. Its rail system
fits easily and the constant field of drives and the typical rugged
terrain of quarries of marble and granite.
1. Hydraulic-driven,diamond wire saw machine can work in different
situations.
2. It’s made of hard materials.The wedges are running
stability,long surviving life of our diamond wire saw machine.
3. Powerful cutting ability,it can split the stone or concrete
easily with no cutting depth limitation.
4. High efficiency,and it’s easy and comfortable to operate and
maintain.
Technical Parameters
| Product model | SSJ-A1 |
| Specification(L*W*H) | 880*850*1760mm |
| Number of wheels | 9pcs |
| Rope length | 9m |
| Dual drive mode Cutting time | 20min/m2 |
| Weight | 130kg |
1. This machine is suitable for opening all kinds of quarry mining
Llike granite, marble, limestone,etc. Using conveniently.
2. Automatically cutting control
Output is controlled by PLC and frequency converter,cutting speed
is fast .
3. Automatical tension of the diamond wire control system
It can change the the tension of the diamond wire according to the
size of cutting, ensure the wire is in best cutting state, so the
service life is longer.
4. Computer operating system
Ensure the Constant tension when the machine under working.
5. The speed of the line can change within 0-40m/s automatically
The machine change the speed accoding the load, suitable for
different hardness quarry.
6. self-protection system
Equipped with high performance displayer, it can display the host
machine’s voltage, electricity and revolving speed in current time.
Warning,display and stop automatically when the equipment has a
problem, like overload, wire broken or over voltage, etc.
