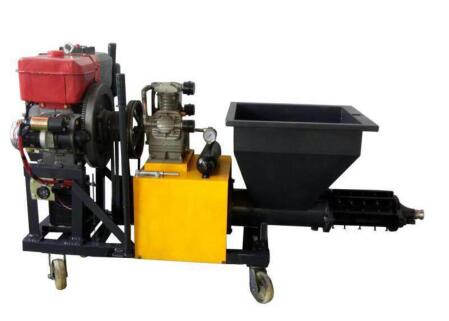

SLW120 Multifunction Robot Mortar Plaster Spray Machine Wall
Plastering Equipment
Description
1. SLW120 cement sprayer is high cost-effective machine for wall
spraying
2. It’s applicable to delivery, bonding and plastering for various
kinds of plastering mortar, thermal insulation mortar, floor
surface mortar, thick layer of mortar, bonding mortar, masonry
mortar, reinforced mortar, filling mortar, perfusion mortar, fiber
mortar, self-leveling mortar.
3. Automatic mortar plastering machine for wall equips mixer system
and has the combined functions of mixing, pumping, bonding and
plastering.
4. Automatic mortar plastering machine for wall configures large
output mortar pump. Pumping max height:40m and max distance:60m.
5. Automatic wall painting machine provides with variable
regulation for speed, pressure and output. You can adjust from
0-50L/min thought the hand wheel on motor.
6. Automatic mortar plastering machine for wall set the pressure
control and protection mechanism to achieves the remote control.
Feature
1. Application: putty powder,paint, latex paint, lacquer, cement
mortar, dry mortar, thermal insulation, waterproofing materials,
fireproof materials, insulation materials, sound-absorbing
materials, other water-soluble material.
2. Adjust the size of the flow, tune out the best coating results.
3. In addition to the electrical control box can switch, but also
equipped with remote control switch spraying.
4. Gun connection with the feeding tube can be rotated for easy
operation.
5. High efficiency, good quality.
6. Easy structure, easy to handling on-site,and accessories is
cheap ,easy to maintenance.
Technology
| Model | SLW120 | SLW150 | SLW180 |
| Output | 100-120m2/h | 120-150m2/h | 120-150m2/h |
| Max.conv,dist | 10m | 15m | 20m |
| Max.Aggregate.size | <4mm | <5mm | <6mm |
| Hose inner size | 25mm | 32mm | 38mm |
| Air pressure | 0.2-0.6Mpa | 0.2-0.6Mpa | 0.2-0.6Mpa |
| Power | 4kw | 5.5kw | 7.5kw |
| Voltage | 380v,415v,440v 50Hz/60Hz |
