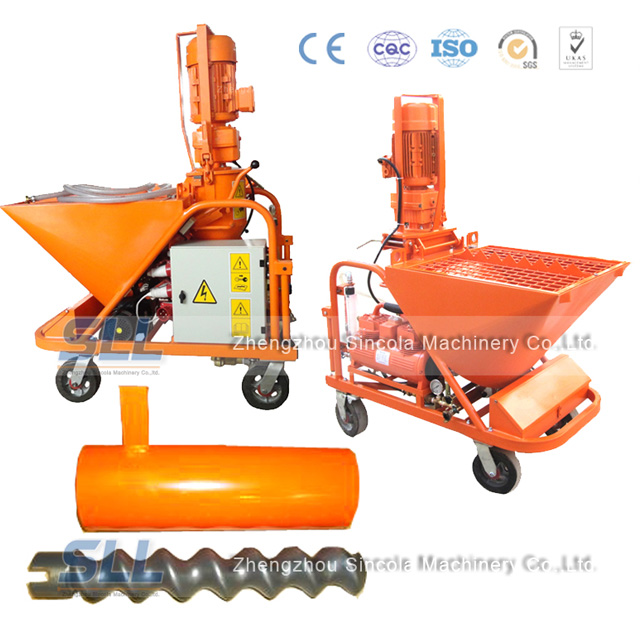

30L/min Dry-mixed Wall Cement Plastering Mortar Spraying Machine
Introduction
1. It adopts pressure sensing technology. Fully automatic spray can
be realized.
2. It integrates the functions in one machine, including mixing,
pumping and spraying.
3. plaster spray machine with advanced technology is featured with
reliable performance, mixing uniformity and simple operation.
4. As a new decoration construction machine, it is produced on the
principle of screw pressurization technology. The machine can make
a better use of plaster characteristics, such as quick-drying and
high viscosity.
The machine is wear-resistant and durable, easy to operate, and
adjustable in flow rate.
Technology parameter
| Model | SX30 |
| Output | 30L/min |
| Working pressure | 3MPa |
| Total power | 8.5kw |
| Air output | 250L/min |
| Water pump output | 700L/h |
| Max.Convery Dist | 50m |
| Hopper capacity | 120L |
| Loading height | 1000mm |
| Converying hose ID | 25/32mm |
| Air hose ID | 13mm |
| Dimension | 1240*680*1550mm |
| Weight | 280kg |
| Main electric motor | 3 Phase,380v,5.5kw |
Application materials of plaster spraying machine
plaster, elastic sculpture materials, waterproof materials,
external wall insulation mortar, tile adhesive and so on. Any
regional and environmental conditions and the shape of the sprayed
surface is adaptable.
Advantages of wall cement mortar plaster spray machine
1.Multi-function: it can spray plaster, putty, real stone paint,
latex paint, waterproof fireproof material, cement slurry, etc.
2.High efficiency: working capacity of one machine is equal to that
of over 10 people.
3.Quality Assurance: few breakdowns, easy maintenance, confidence
comes from quality
4.Quality approval: over the past few years, thousands of customers
speak highly of our machine.
