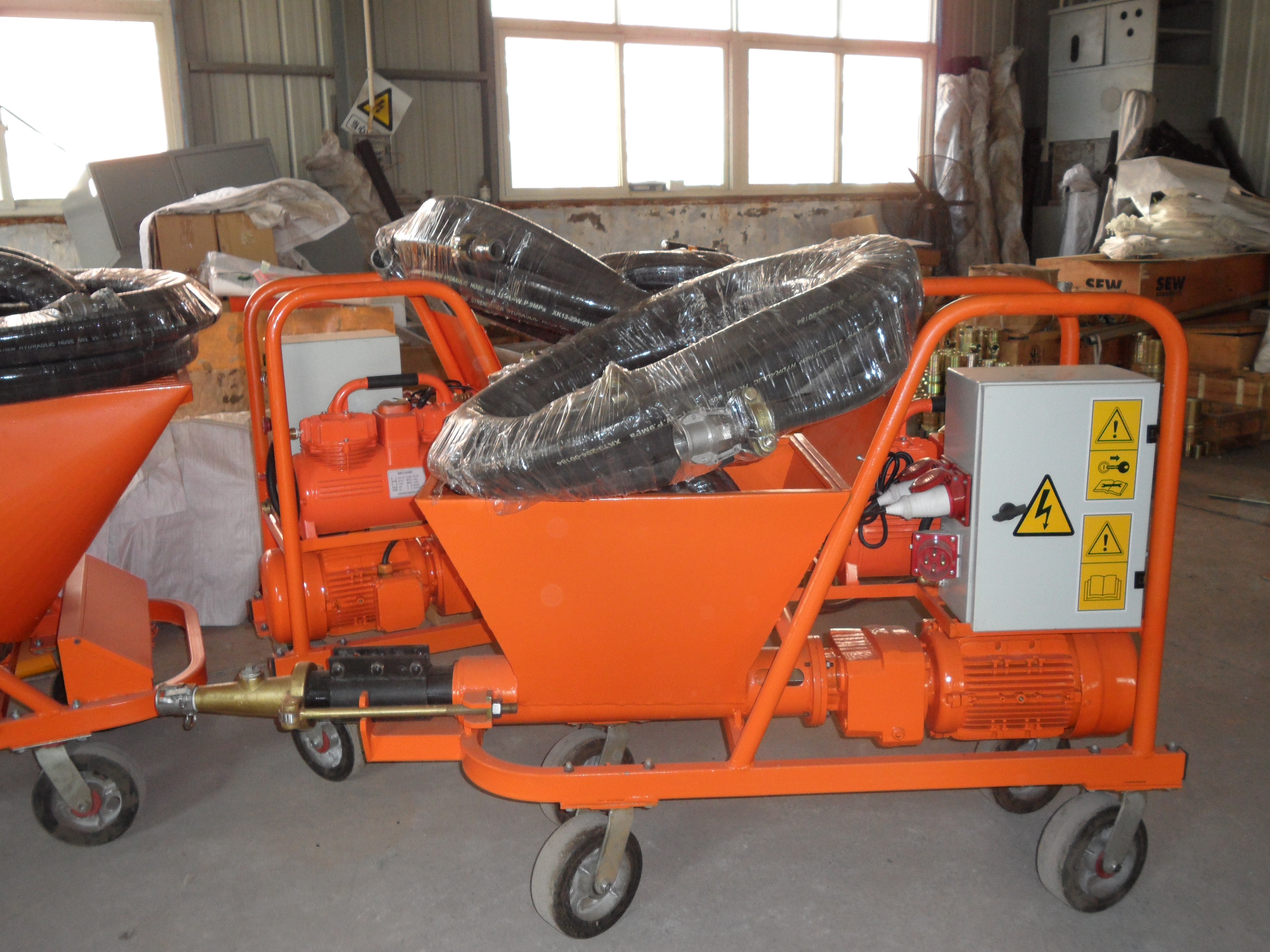

7.5kw Plaster Mortar Cement Spraying Equipment 3 Phase Mortar
Sprayer Machine
Introduction
The mortar spraying machine designed by KINGISO specially for
doors, has applied for state patent. It has the advantages:
convenient, fastness and high automatization. This machine is the
ideal choice to transfer manual task to automatic production. This
machine can use with other spraying equipment (spraying booth,
spraying room, water spraying booth etc.). It can lead you a high
quality production with low cost. It can substitute 6 specialized
workers at least.
Technology parameter
| Model | SPT30 |
| Output | 30L/min |
| Working pressure | 3MPa |
| Total power | 7.5kw |
| Air output | 250L/min |
| Max.Convery Dist | 50m |
| Hopper capacity | 26L |
| Loading height | 800mm |
| Converying hose ID | 25/32mm |
| Air hose ID | 13mm |
| Dimension | 1460*600*1100mm |
| Weight | 190kg |
| Main electric motor | 3 Phase,380v,5.5kw |
Application materials of plaster spraying machine
Mortar Spray Painting Machine is designed to spray mortar, cement,
mud, slurry etc. It’s commonly used in wall and ceiling spraying
work, and it's suitable to spray in road, highways, tunnels,
railways, hydroelectric power station and underground chambers
construction.
Feature of cement spraying machine
1. Adapt to spraying materials: water-soluble materials such as
wall mortar, fireproof coating, latex paint, real stone paint,
cement mortar, dry mortar, thermal insulation mortar, waterproof
material, fireproof material, heat insulation material, sound
absorbing material.
2. Adjust the flow rate to adjust the appropriate spray effect.
3. The connection between the gun and the feed tube can be rotated
for easy operation.
4. High construction efficiency and good quality.
5. Small size, easy to carry on site, and low cost and easy
maintenance.
6. Easy to use, fast, save materials, save labor, save money.
