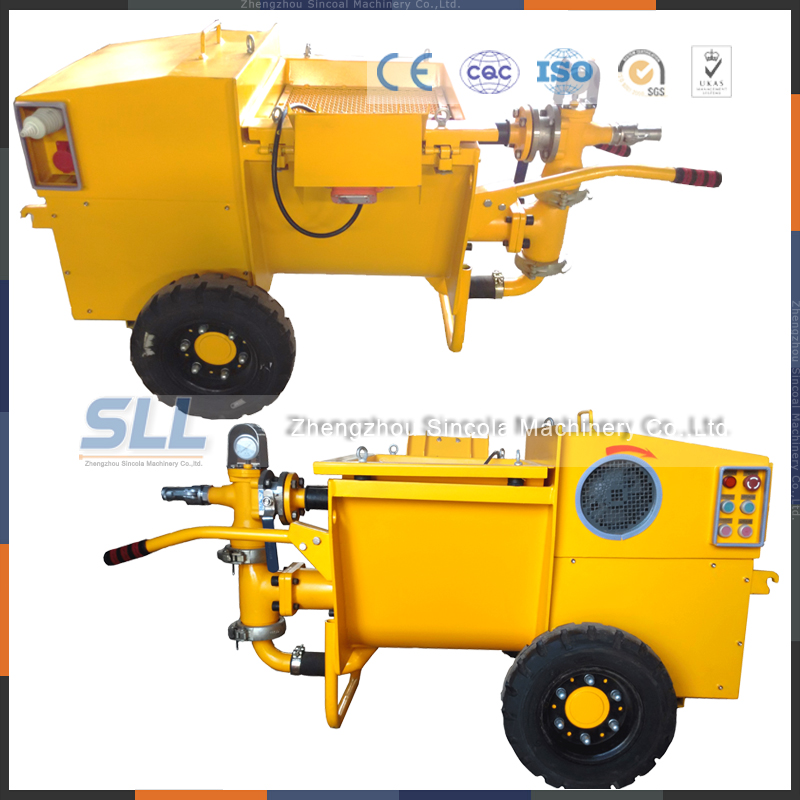

Electric Mini Piston Cement Mortar Transfer Pump 50L/min Mortar
Pumping Machine
Description
SG5040 mortar pump used for aggregate size less than 6mm pre-mixing
mortar and site mixing mortar conveying and spraying. It can spray
evenly, continuously and efficiently. It has high cost performance,
strong reliability, low wear of piston and long service life. It is
equipped with continuous mixer, can achieve continual operation. It
can be used in the building, the external wall spray plaster, used
in road and bridge, tunnel, water conservancy, underground
engineering pore pressure grouting.
It is also ideal equipment applied in spraying. It is widely used
for grouting in mine gallery, rail and road tunnel, hydropower
construction, slope consolidation, underground engineering, subway
and civil engineering etc.
Technology Parameter
| Item | SG50-40 |
| Cylinder Dia | φ90 mm |
| Output | 50 L/min |
| Pressure | 4 Mpa(40bar, 580psi) |
| Piston stroke | 85 mm |
| Piston Speed | 95 /min |
| Inlet diameter | 75 mm |
| Outlet diameter | 50 mm |
| Max.Aggregate.size | 5 mm |
| Cement : Sand | ≥1:3 |
| Dimensions | 1610×1024×900 mm |
| Weight | 300 kg |
| Power unit | 5.5 kW(Electric)/10hp(Diesel) |
| Note: Single or Double Passageway.Skid or Tyre |
